1 Overall overview: Establish a remote video surveillance system to conduct 24-hour remote video surveillance of the station positions in the company's management, (to the ** East Freight Yard, * Marshalling Station, ** Station for site monitoring); establish monitoring in the company's new office building command center Wall, centralized monitoring, unified command. Realize the real-time dialogue and guidance function between the center and the site. Establish a remote video conferencing system, establish a video conference room in each station meeting room of the company management, usually the workshop station management personnel can be held in the video conference room of the station; open a video conference room in the new company office building, and collect the video of the conference room of each station to realize Real-time video dialogue between the central venue and the station venue. System technical performance indicators: Using communication 2M*n high-speed transmission channel, using low-bandwidth high-quality network transmission image technology, each station is constructed by 2 monitoring points and 1 video conference point, among which indoor 10x optical zoom digital camera + controllable cloud platform + Audio acquisition + real-time dialogue speaker + video server; outdoor with 20x optical zoom digital camera + control PTZ + audio capture; video conferencing using fixed lens + voice reverberation equipment + speaker + TV. The monitoring wall collects and maps the monitoring image information of each station. It consists of multiple monitors, video servers and main monitors. The main console can switch the monitoring scene and lens position at will. Record the scene in real time for a long time, and the mass storage space provides historical query information. The central video conference collects and maps the video conference point information of each station, and is composed of a camera, an integrated audio equipment, and a video wall. System information point distribution Remote video surveillance and conference system project budget Remote monitoring project name Number of monitoring Budgetary expenses (ten thousand yuan) Remarks Basic station level 26 Basic station level monitoring, 2 points per station, 13 stations Large station level 6 Large station level monitoring, 3 stations Other monitoring points 4 Other monitoring points Company command center 1 Company command center integrated monitoring system Subtotal Teleconferencing Basic station level 15 Basic station level monitoring, 1 point per station, 15 stations Company command center 1 Basic station level monitoring, 2 points per station, 13 stations The network environment is as follows: Each station has 2M bandwidth and a rail transmission network connection. According to the requirements of your project and the requirements of relevant national laws and regulations, we have carefully studied and analyzed the design of this system. The system has the characteristics of advanced performance, reliable quality, economical and practical, and the system has the ability to easily expand and seamlessly connect with other information systems. It laid the foundation for the visual management of security systems. Relevant specifications for reference and reference include: The advantage of networking is that video, audio, and data can be transmitted simultaneously in a single network cable, which solves the problem that a conventional cable can only transmit one type of signal. The front camera directly accesses the network video server. The analog video signal is converted to a standard IP packet, and digital video is transmitted over a TCP/IP network, eliminating the need for traditional wiring, such as fiber optics, coaxial cable, and the like. This structure makes it extremely easy to transmit video signals using the LAN cabling system already in the system. Breaking the point-to-point approach of traditional wiring, effectively saving users' upfront investment and investment in line maintenance work in the later stage. Even if a new route is required, the amount of cable required for the link and the amount of cable laying and maintenance work is much smaller than the analog system. The network video server uses an embedded operating system, and the stability and security of the system are extremely high. Through the network, users can easily carry out remote management and firmware update Since each device is installed in a distributed manner on the remote camera end, even if a single device fails, it only affects the device and does not affect the entire system. The system's recording server is essentially connected to a computer on the network, and its installation location can be any location (conference room or network room). Users can increase the number of recording servers as needed, which can increase the storage capacity of the system indefinitely. Clients can be distributed anywhere on the LAN, and there is no limit to the number. If you do not restrict the permissions of the client, then each client can view images on all networks. The B/S structure and the multi-server architecture effectively solve this problem. Image storage and image browsing can be performed simultaneously. With multicast technology, the system can minimize the use of network bandwidth. plan description: In addition to the above to meet your requirements, this program has the following advantages: Sofa Sets,sofa set for living room,recliner sofa set,leather sofa set Guangzhou LoPhiDa Co.Ltd , https://www.gdwidinlsa.com
Powerful system management tools, user-friendly user interface Use IP-based network video decoder devices for end-to-end digital solutions. Based on the B/S distributed system architecture, it can provide distributed unlimited storage capacity. Ability to support multi-site central meetings without geographical restrictions. Closely integrated with conventional CCTV equipment, making full use of the original conference system resources. Powerful management tools provide full bandwidth usage control, including storage limits for each hard drive. Provide wireless video transmission (based on 802.11b) solution The software system comes with a SQL database desktop engine to reduce user input. Remote conferences can be realized, and monitoring and control of remote locations can be realized as long as there is an Internet. There is no need to independently route the conference system, and video, audio, and control are transmitted simultaneously through the network. The system has strong expansion capability and low maintenance cost.
Office building video surveillance program - Everbright video
"Industrial TV System Engineering Design Specification" GBJll5-87 "General Technical Conditions for Telecontrol Equipment Terminals" GB/T16435-1996 "Safety Industry Management Regulations of the People's Republic of China" "National Software Engineering Standards" "China Electrical Installation Engineering Construction and Acceptance Specifications" "Safety Prevention Engineering Procedures and Requirements" GA/T75-94 "General Inspection Symbols for Safety Inspection and Prevention System" GA/T74-94 "Design Specification for Safety and Prevention of Social Public Places" "Code for Electrical Design of Civil Buildings" JGJ/T16-92 Public Security Relevant documents of the Ministry of Public Security and the Department of Public Security. "People's Republic of China Public Industry Standards" (GA/T70-94) "Safety Prevention Engineering Procedures and Requirements" (GA/T75-94) "Electrical Installation Engineering Construction and Acceptance Specifications" (BGJ232.90.92) "Civil Closed Circuit Television System Engineering Technical Specification (GB50198-94) "Electrical Design Code for Civil Industrial Buildings" (GJT16-92) "TV System Video Index" (CCTR RECOMMENDATION 472-3)

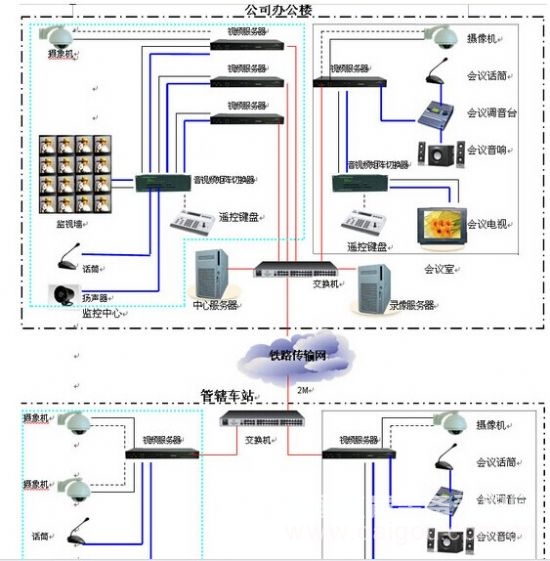

1 Networked structure - "One line and more energy" System characteristics
This solution can meet the requirements of your organization and cater to the unstoppable IP trend. The solution adopts the internationally advanced network video server as the core of the system. It uses MPEG4 compression and decompression, which is the most economical and mature networking method. Our solution combines the monitoring system and the video conferencing system ingeniously. The monitoring system and video conferencing system usually operate as two independent systems without mutual interference. When needed, the signals of the two systems can be exchanged. The two systems can also be managed by one administrator. The video server adopts our company's VS600. It is a 19" rack-mounted design that integrates encoding and decoding. Each video server has two channels of audio and video. You can flexibly select two-way encoding according to different site conditions, two-way decoding or one way. Coding and one-way decoding. The central server is designed in the company office building room. The monitoring screens of all stations are collected in the company monitoring center. The management personnel can see the screen through the monitoring center of the monitoring center, or they can see the screen through the computer in their own office. It is very convenient. The audio and video of the company conference room can be transmitted to the TV of all the station conference rooms at the same time. If necessary, the audio and video of each station conference room can be transmitted to the TV of the company conference room. The control of the whole system is The company, the system administrator has the highest authority, can control the operation of all station monitoring systems and conference systems, administrators can also create different levels of different authority administrators for company leaders and station management personnel. Company system administrators on business trips You can use the same administrator at each of the following stations. The administrator can control the monitoring and conference equipment through software on any computer, or control the monitoring and conference equipment through the dedicated control keyboard configured by the system, such as adjusting the camera range, such as the ball cloud. The system rotates left and right up and down, etc. The system designs an audio and video matrix switcher for each monitoring center and conference room, and the administrator can switch the monitoring scene and the meeting place freely through it. The system reserves multiple audio and video channels. The video conference screen of the superior authority can be connected to the system, and the conference screen of the superior administration can be transmitted to the following stations in time to realize the seamless connection of the two-level conference system. The system has perfect video recording function and monitoring. The system's recording server can record 24 hours and record all monitoring signals. The video server of the conference system can record the meeting situation of each meeting, so that it can be viewed by people who cannot attend the event, and can also be saved as long-term data. A variety of retrieval methods, convenient for staff to check before Meeting situation.
Real-time conference: Provides multi-screen split screen display such as 4/6/8/12/16. Provides multiple forms of user and rights management, safe and reliable. Provide a variety of recording methods: continuous (plan) / motion detection / alarm, you can record daily, weekly, or select a day / time period, you can dynamically set the quality of the display or video image. A variety of video query methods, with powerful video playback capabilities.
